🔌 EVwallbox 22 kW Portable Smart EV Charger – Power, Freedom & Full Control!
The EVwallbox is a high-performance portable EV charger offering up to 22 kW of charging power. Designed for both indoor and outdoor use, it's ideal for charging electric and plug-in hybrid vehicles at home, at your holiday house, or even while traveling. Lightweight, compact, and smart – it gives you complete freedom to charge wherever you are.
🚗 Portable, Lightweight & Effortless
Weighing only 1.84 kg, the EVwallbox is easy to carry and use on the go.

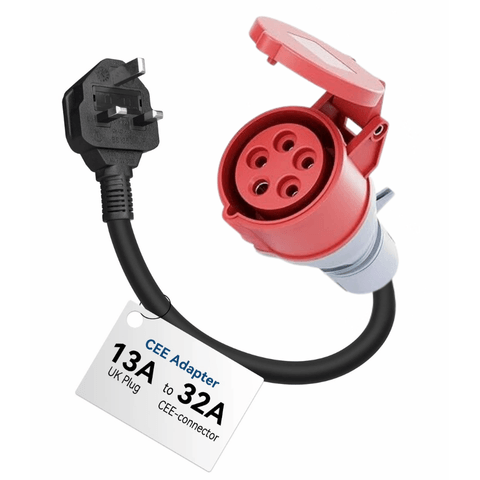

It comes equipped with a UK 3-pin plug converter, making it perfect for use in homes across the UK, including secondary residences or holiday homes.
📱 Smart Charging via TUYASMART App
With the TUYASMART app, you can control your charger remotely over Wi-Fi:
- Start/stop charging
- Schedule charging sessions
- Monitor energy, voltage, and power usage
- Adjust the charging current manually between 6 A and 32 A in 1-amp increments, offering power from approximately 1.4 kW to 22 kW
⚠️ Please note: Some UK homes may be limited to 10 A or 13 A due to their electrical infrastructure. Always check your home’s capacity and adjust the amperage manually via the app to prevent overloading your electrical system.
⚡ Flexible Power Options & Infrastructure Compatibility
| Power Source | Max Output |
|---|---|
| CEE Red 32 A (3-phase) | Up to 22 kW |
| CEE Red 16 A (3-phase) | Up to 11 kW |
| CEE Blue 32 A (single-phase) | Up to 7.4 kW |
| UK Household Socket 16 A | Up to 3.7 kW |
| UK Household 13 A / 10 A | ~2.9 kW / ~2.3 kW |
Charging power also depends on your vehicle’s onboard charging system:
- Single-phase vehicles: 1.4 kW – 7.4 kW
- Three-phase vehicles: 4.2 kW – 22 kW
🛡️ Advanced Safety Features
- DC leakage detection: 20 mA AC, 6 mA DC
- RFID Access Control – 3 RFID cards included
- Built-in protections against overcurrent, short circuits, and overheating
- IP65 rated – weather-resistant for indoor & outdoor use
📦 What’s Included

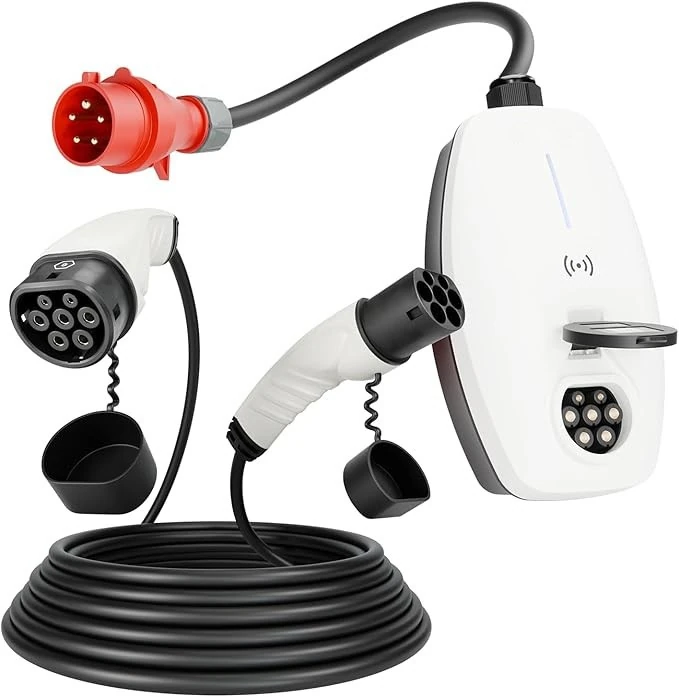

- EVwallbox 22 kW Portable Charger
- UK 3-pin plug adapter
- 3 RFID access cards
- Free protective carrying case
🔧 Technical Specifications
- Dimensions: 15 x 28 x 9 cm
- Weight: Approx. 1.84 kg
- Input Voltage: 230/240 V (single-phase) or 400/415 V (three-phase)
- Frequency: 50 Hz
- Cable Length: 60 cm
- Wi-Fi: 2.4 GHz (802.11b/g/n)
Mounting: Wall-mountable or panel-enclosed
Operating Temp: -30°C to +55°C
Ingress Protection: IP65
✅ Why Choose EVwallbox?
- 🔋 Wide charging power range (1.4 kW to 22 kW)
- 📲 Full control via smartphone (TUYASMART app)
- 🧳 Portable & ideal for UK homes and travel
- 🛡️ Complies with high safety standards (RFID, RCD, IP65)
- ⚙️ Adjustable amperage for safe charging in all environments
EVwallbox – Charge smarter. Charge anywhere. Take control.
